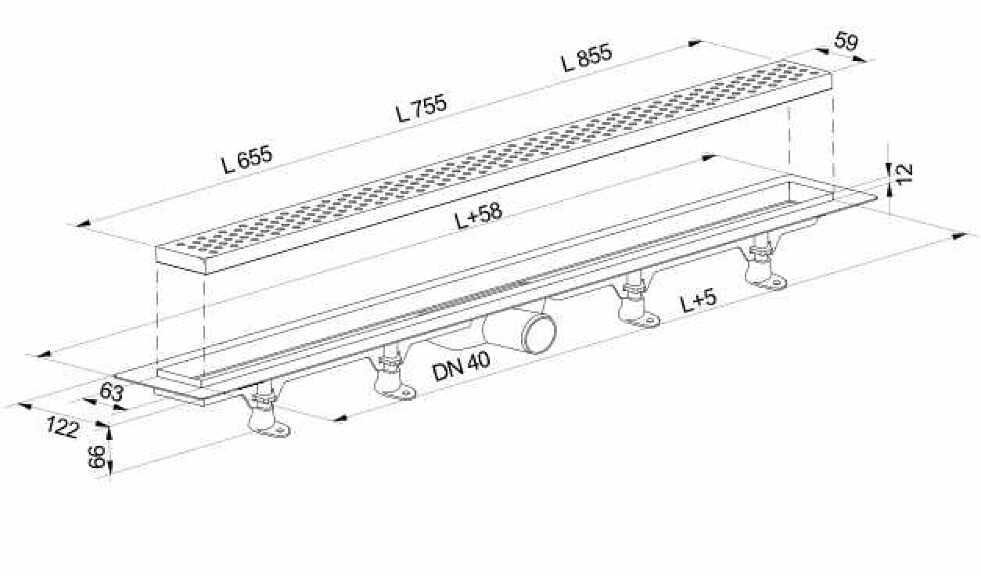

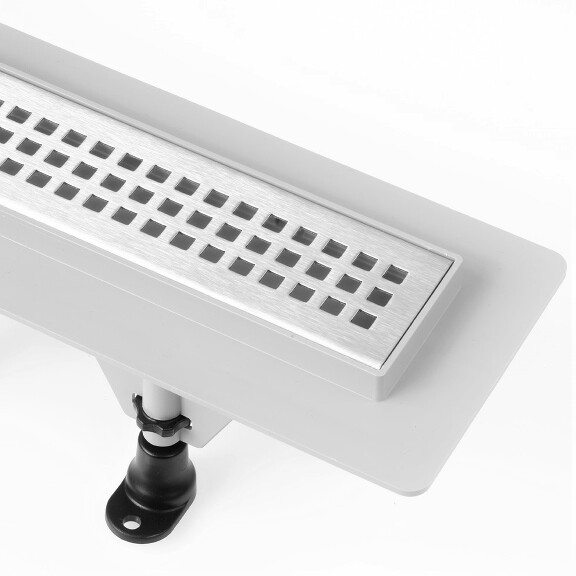

SALE - Drain channel with stainless steel grid - floor installation, design 1

Specification

  • building height from 66 mm and up
  • water disconnecting trap 41 mm
  • drain body material: polypropylene with filler
  • grid material: stainless steel AISI 304,
    thickness: 1.5 mm
  • drain body with slope
  • top-down drain pipe cleaning system
  • resistance to chemicals for waste purification
  • EN 1253, load class K3-300 kg



The package contains

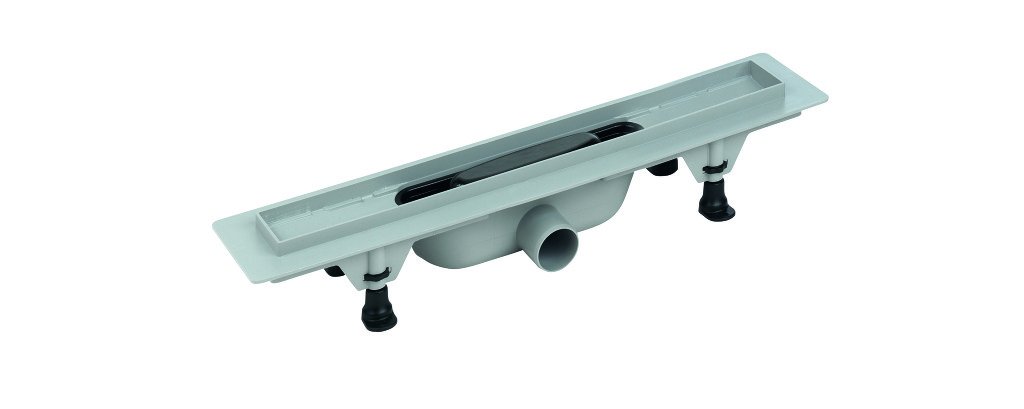

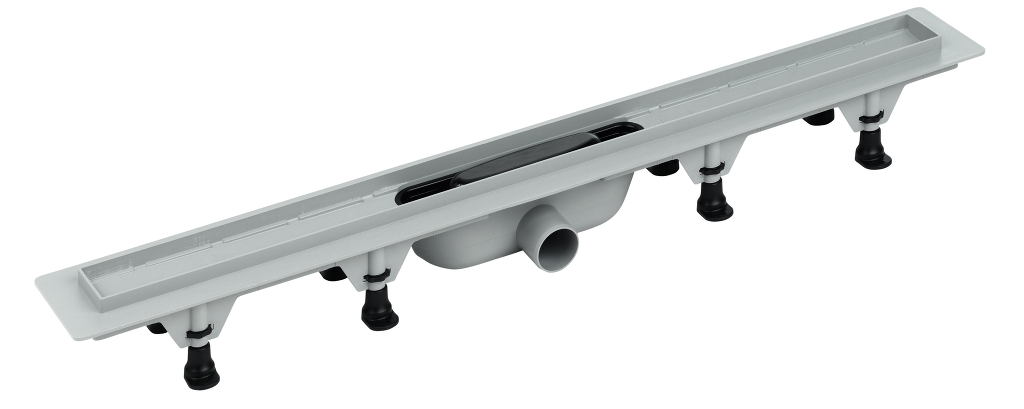

  • drain body

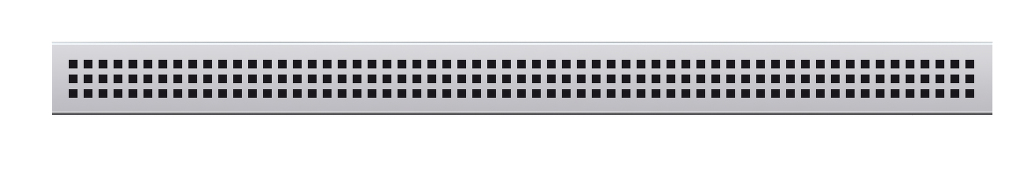

  • stainless grid
  • siphon
  • anchor legs
  • hook for grid removal
  • waterproof adhesive strip
  • installation manual

Available variants

Art. grid water trap / dry valve DN box
SZE1391 390 mm dry valve 40 1 pcs
SZE1651 655 mm dry valve 40 1 pcs
SZE1751 755 mm dry valve 40 1 pcs
SZE1851 855 mm dry valve 40 1 pcs
SZE1390 390 mm water trap 40 1 pcs
SZE1650 655 mm water trap 40 1 pcs
SZE1750 755 mm water trap 40 1 pcs
SZE1850 855 mm water trap 40 1 pcs

All prices do not include VAT.

Downloads

Technical information Download
Installation instructions - plastic drain channels Download
Declaration of performance - plastic drain channels Download
Leaflet drain channels Download
